The AMPS System™

The AMPS (Automatic Mechanical Packing System) is an advanced sealing solution that uses dual pneumatic pistons and a remote control unit to maintain constant compression on braided packing rings. By actively loading the packing set, AMPS ensures consistent sealing performance without the need for manual adjustments, reducing leakage and extending packing life.

Key benefits include leak reduction, improved maintenance safety, and remote gland pressure control. With a wide operating range—actuator travel from 0.312" to 2.000", regulator pressure up to 250 psi, and temperatures from -15°F to 400°F—the system is ideal for pumps, mixers, pulpers, and other rotating equipment in demanding industrial environments.

Not Sure What You’re Looking For? Contact Us

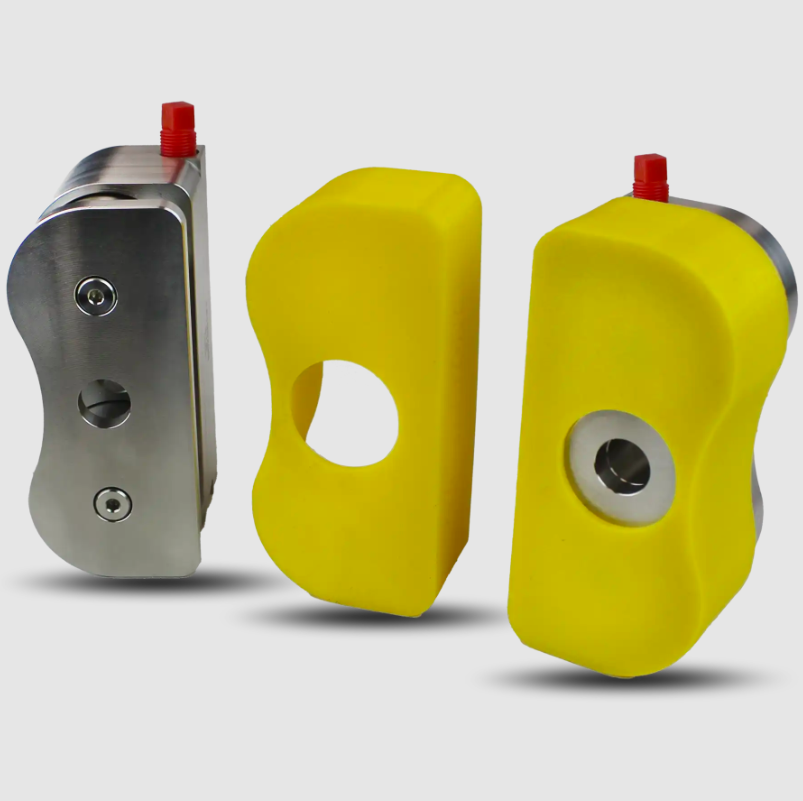

AMPS Unit:
✔ Dual piston actuators
✔ Attaches to existing stuffing box glands and bolts
✔ Provides constant energizing force to packing rings

Control Unit:
✔ Single-point adjustment of pressure regulator
✔ Mounted remotely at a convenient and safe location
✔ Powered by compressed air or bottled gases

Benefits:
✔ Keeps leakage low
✔ Reduces maintenance
✔ Improves sealing performance
✔ Remote gland load management
✔ Increases operator safety

Technical Data ↓

    • Actuator Travel range: 0.312” – 2.000” (7.92mm to 50.8mm)

    • Actuator Stud Range: .250” – 1.500” (8mm – 36mm)

    • Regulator pressure range: 6 – 250 PSI (0.4 to 17.2 Bar)

    • Maximum Temperature of actuator: 400F (204C)

    • Minimum Temperature of actuator: -15F (-26C)

    • Maximum pneumatic pressure: 300 PSI (20.6 bar)
