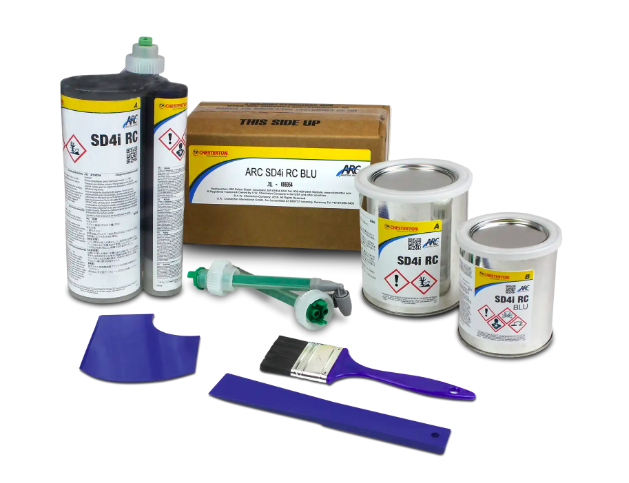

ARC SD4i RC
Chesterton ARC SD4i RC is a fast-curing, sprayable epoxy coating reinforced with ceramic for demanding immersion environments. It forms a smooth, high-gloss barrier that resists harsh chemicals and microbiologically influenced corrosion (MIC).
Applied at 250–370 µm per coat, ARC SD4i RC cures rapidly—often returning to service the same day—and withstands dry temperatures to 248 °F and wet immersion up to 149 °F. Ideal for repairing or protecting flotation cells, hydrocyclones, slurry pipes, heat exchangers, and thickener tanks, it extends equipment life while minimizing downtime.
Not Sure What You’re Looking For? Contact Us
Product Features
✔ Protects against corrosion and erosion
✔ Provides extended protection in aggressive chemical immersion services
✔ Abrasian resistant surface
✔ High gloss, low drag surface
✔ 100% solids; no VOCs; no free isocyanates
✔ Low viscosity, thin film
✔ Apply by brush, roller, or spray
-
Flotation cells
Heat exchangers
Hoppers
Hydrocyclones
Bins and silos
Deaerators
Thickener tanks
Slurry tanks
Slurry pipes
Pumps and Fans
-
248 °F ( 120 °C )
-
149 °F ( 65 °C )
-
26 Mg loss
-
32.4 Mpa ( )
-
Blue
-
Nominal, based on 1 coat; total DFT 375 μm (15 mil)
940 ml cartridge covers 2.51 m2 (27 ft2)
0.75 liter kit covers 2.0 m2 (21.5 ft2)
Note: Components are pre-measured and pre-weighed.
