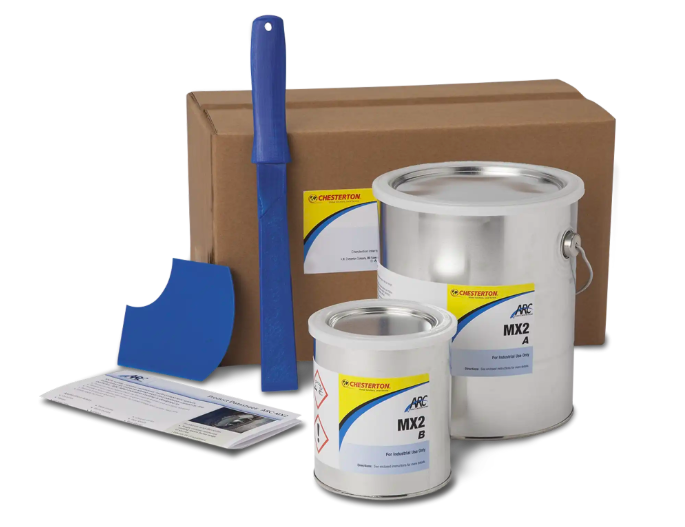

ARC MX 2

Chesterton ARC MX2 is a 100% solids, ceramic-reinforced epoxy composite designed to protect metal surfaces from severe abrasion caused by fine particles. It contains 92% pure alumina ceramic, providing excellent hardness and wear resistance.

This trowel-applied coating requires no primer and can be applied up to 6 mm thick without sagging. It’s ideal for cyclones, valves, slurry pumps, mixers, and pulverizers, performing well in temperatures up to 400°F dry and 203°F wet.

Not Sure What You’re Looking For? Contact Us

Product Features

✔ 92% pure alumina ceramic reinforcement yields maximum hardness and abrasion resistance
✔ Preferred for slurries or particle flow with particulates less than 3 mm (1/8"") in size
✔ Easily apply by trowel
✔ Applied up to 6 mm (1/4") without sag
✔ Bright white
✔ No primer required

    • Cyclones

    • Valves

    • Hopper bins

    • Pulp dewatering screws

    • Wear plates

    • Slurry pumps

    • Agitators

    • Mixers

    • Cleaner cones

    • Pipe spools

    • Pulverizers

  • 400 °F ( 205 °C )

  • 203 °F ( 95 °C )

  • 23.5 Mpa ( )

  • White

  • Nominal, based on a 3 mm (120 mil) thickness

    • 2.5 liter kit covers 0.83 m2 (8.9 ft2)​

    • 16 liter kit covers 5.28 m2 (56.8 ft&lt2)

    Note: All components are pre-measured and pre-weighed. Also included in every kit are mixing and application instructions. 2.5 liter kit includes tools.
