1622

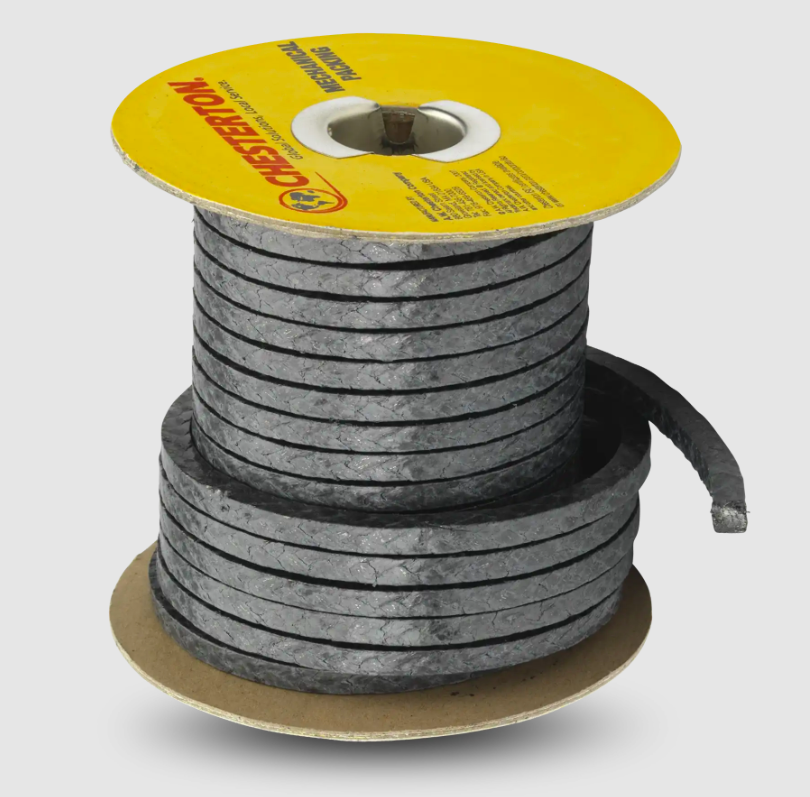

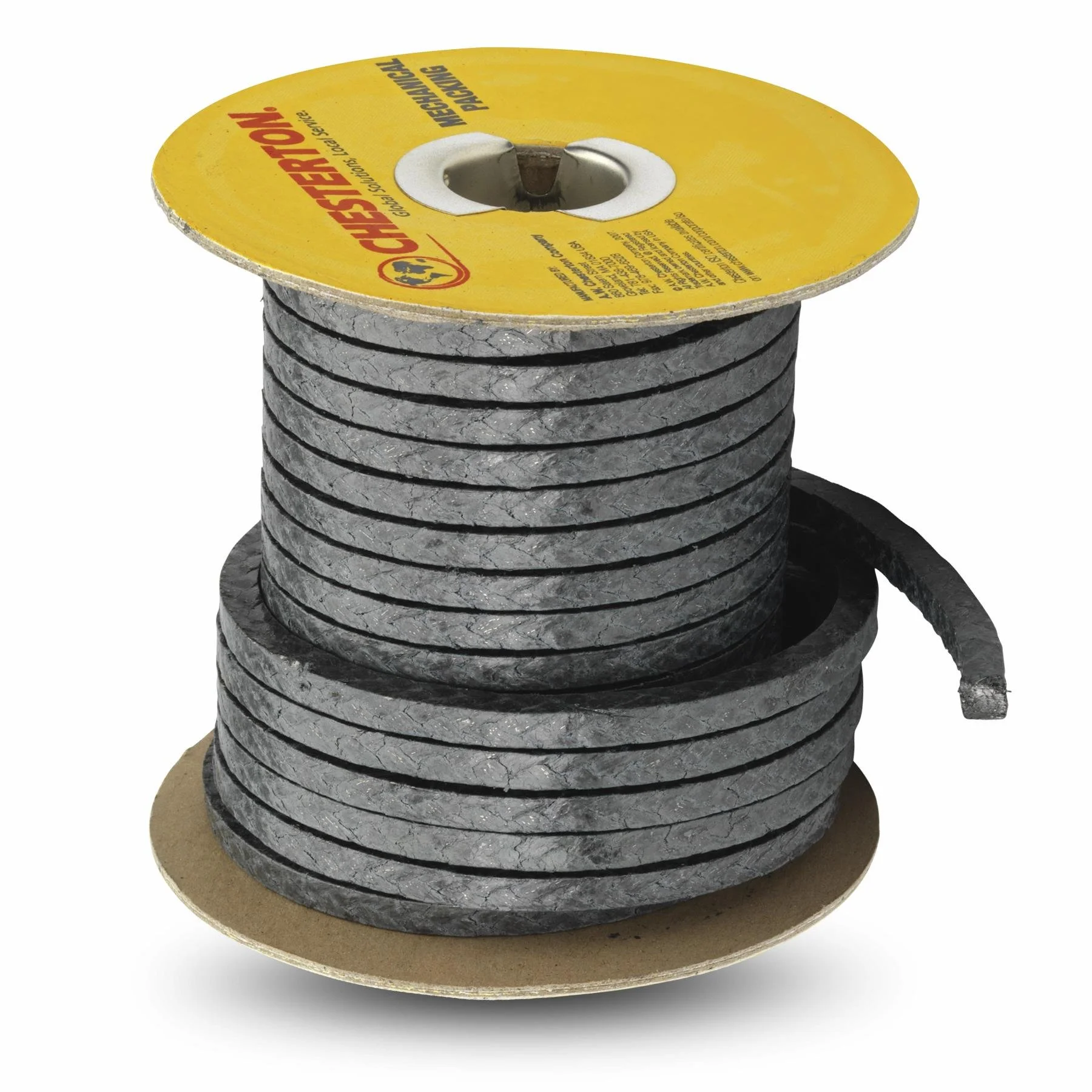

Chesterton 1622 is a high-performance graphite valve packing reinforced with Inconel mesh, specifically designed to minimize fugitive emissions and provide reliable, long-lasting sealing performance in demanding industrial environments. It delivers proven low leakage rates, with certified performance under API 622 and API 607 fire-safe standards for enhanced safety, compliance, and operational reliability.
Ideal for chemical, petrochemical, and refinery applications, it handles high pressures and elevated temperatures while offering long-term sealing, excellent corrosion protection, and easy single-spool installation for faster, safer, and more efficient maintenance.
Not Sure What You’re Looking For? Contact Us
Product Features
✔ Extremely low emissions
✔ Fire safe to API 607
✔ Single spool packing
✔ High-pressure capability
✔ API 622 3rd edition tested and qualified
✔ API 624 tested a qualified for numerous valve OEMs
✔ ChevronTexaco Standard tested and passed
✔ Valve packing emission warranty
✔ ISO 15848-1 passed CO2 at 200˚C to the tightness class BH
✔ ISO 15848-1 passed CO2 at 400˚C to the tightness class BH
Technical Data ↓
-
Light and heavy hydrocarbons, VOCs, VHAPs, steam, and most non-oxidizing chemicals
-
Nickel alloy, wire-reinforced, flexible graphite packing with special blocking agents
-
3.2 ( 0.125 inch )
-
25.4 ( 1 )
-
5000 PSIg ( 345 BARg )
-
1200 °F ( 650 °C )
-
450°C (850°F) oxidizing atmosphere Temperature Limit
-
14 pH
-
Except in strong oxidizers
